Description

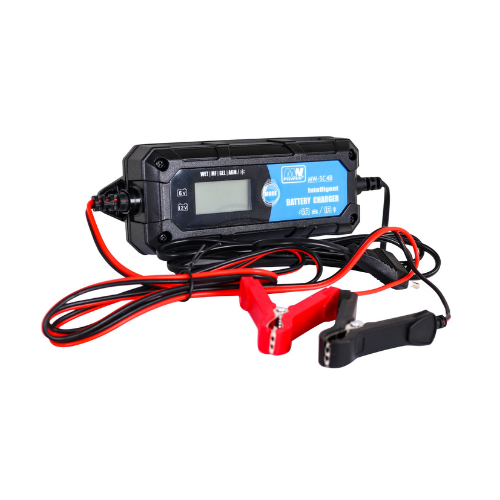

Specification | Charger |
Characteristics |
|
Entry | Input voltage 220-240V (50Hz) Input current (max.) 0.75A/230VAC |
Exit | Output voltage (max.) 7.4V – Output current 1A Output voltage (max.) 14.7V – Output current 1A / 4A (selectable) |
Security | Overvoltage >16VDC (12V mode), >32V (24V mode), output voltage disconnection Short circuit Output voltage disconnection, information on display |
Working environment | Operating temperature -5°C ÷ + 40°C Operating humidity 20-90% (relative humidity, no condensation) Storage temperature and humidity -10°C ÷ 60°C, 10 ÷ 95% (relative humidity, no condensation) |
Safety standards | Safety standards EN 60335-2-29:2004 + A2:2010; EN 60335-1:2012 + A11:2014 EMC standards EN 55014-1, EN 61000-3-3, EN 55014-2, EN 61000-3-3, EN-61000-3-2 |
